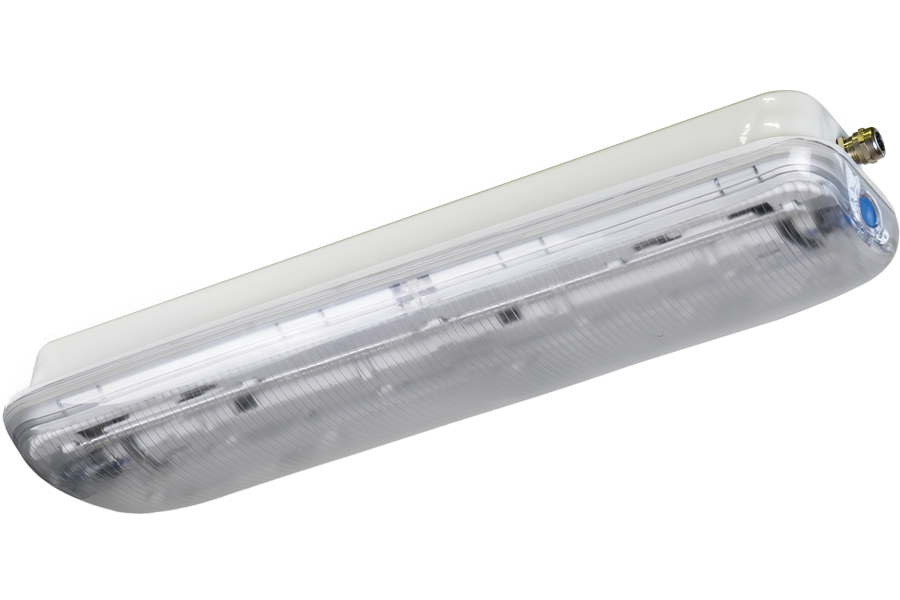

LED light fixtures in painted AISI 316L stainless steel, lenght 650 mm IP66/IP67
Product details
| Data sheet | Luminaire power | Dimensions | Luminous flux (TJ=25°C) | Output flux | Diffuser type | Optics | Output efficiency | Control system/dimming | Emergency function | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 20W | 650X160X116 mm | 2640lm | 2200lm | OPALINE POLYCARBONATE | Symmetric wide | 110lm/W | Standard on-off | - | 841341 | |
| 40W | 650X160X116 mm | 5280lm | 4400lm | OPALINE POLYCARBONATE | Symmetric wide | 110lm/W | Standard on-off | - | 841342 | |
| 20W | 650X160X116 mm | 2880lm | 2400lm | Trasparent polycarbonate | Symmetric wide | 120lm/W | Standard on-off | - | 849341 | |
| 40W | 650X160X116 mm | 5760lm | 4800lm | Trasparent polycarbonate | Symmetric wide | 120lm/W | Standard on-off | - | 849342 | |
| 20W | 650X160X116 mm | 2640lm | 2200lm | OPALINE POLYCARBONATE | Symmetric wide | 110lm/W | Standard on-off | Internal battery duration 3h recharge 24h | 841371 | |
| 20W | 650X160X116 mm | 2880lm | 2400lm | Trasparent polycarbonate | Symmetric wide | 120lm/W | Standard on-off | Internal battery duration 3h recharge 24h | 849371 | |
| 40W | 650X160X116 mm | 5760lm | 4800lm | Trasparent polycarbonate | Symmetric wide | 120lm/W | Standard on-off | Internal battery duration 3h recharge 24h | 849372 | |
