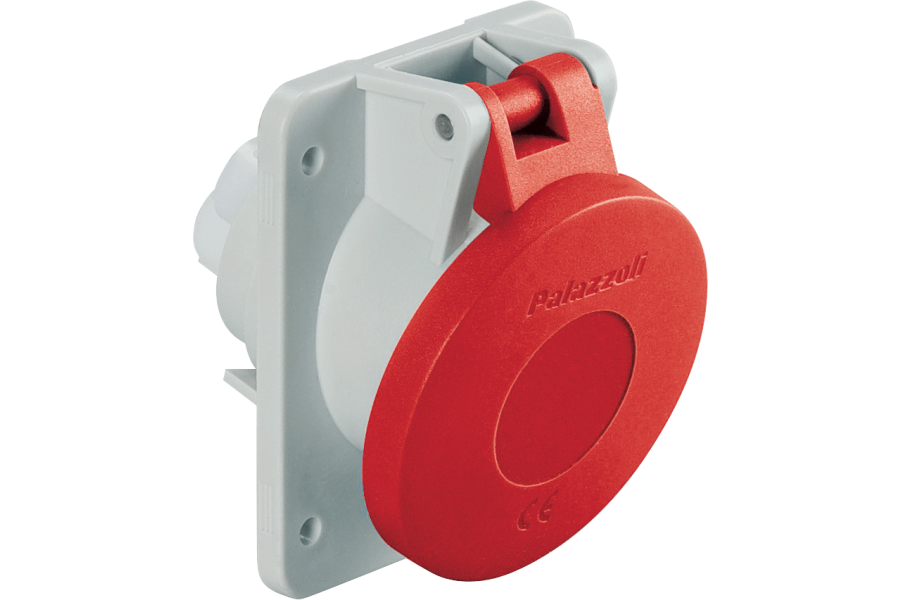

Panel mounted sockets15° angled 50-60Hz IP44

Data sheet	Rated current	Rated operating voltage	Flange dimensions	Poles	Clock Position	Code
	16A	110V	65X83 mm	2P+	4h	488124

	16A	110V	65X83 mm	3P+	4h	488134

	16A	110V	88X100 mm	3P+N+	4h	488144

	16A	230V	65X83 mm	2P+	6h	488126

	16A	230V	65X83 mm	3P+	9h	488139

	16A	230V	88X100 mm	3P+N+	9h	488149

	16A	400V	65X83 mm	2P+	9h	488129

	16A	400V	65X83 mm	3P+	6h	488136

	16A	400V	88X100 mm	3P+N+	6h	488146

	32A	110V	88X100 mm	2P+	4h	488224

	32A	400V	88X100 mm	3P+	6h	488234

	32A	110V	88X100 mm	3P+N+	4h	488244

	32A	230V	88X100 mm	2P+	6h	488226

	32A	230V	88X100 mm	3P+	9h	488239

	32A	230V	88X100 mm	3P+N+	9h	488249

	32A	400V	88X100 mm	2P+	9h	488229

	32A	400V	88X100 mm	3P+	6h	488236

	32A	400V	88X100 mm	3P+N+	6h	488246
